2.5*1.3m UV Led Flatbed Printer with G6 Printhead CMYK Lc Lm W and V

Short Description:

Professional series of wide-format flatbed UV printer YC2513L. The main advantages of this series are photographic print quality, high-speed printing, as well as accurate color transmission. It has better print quality and better ink curation. Curing system UV lamp or High-intensity powerful UV-LED can be chosen. Cost-effective solution to any flat materials printing needs.


Product Detail

Product Tags

COMPANY INFORMATION

7dde3ccf-376b-4e1a-b7a6-b3dbe27c36c2

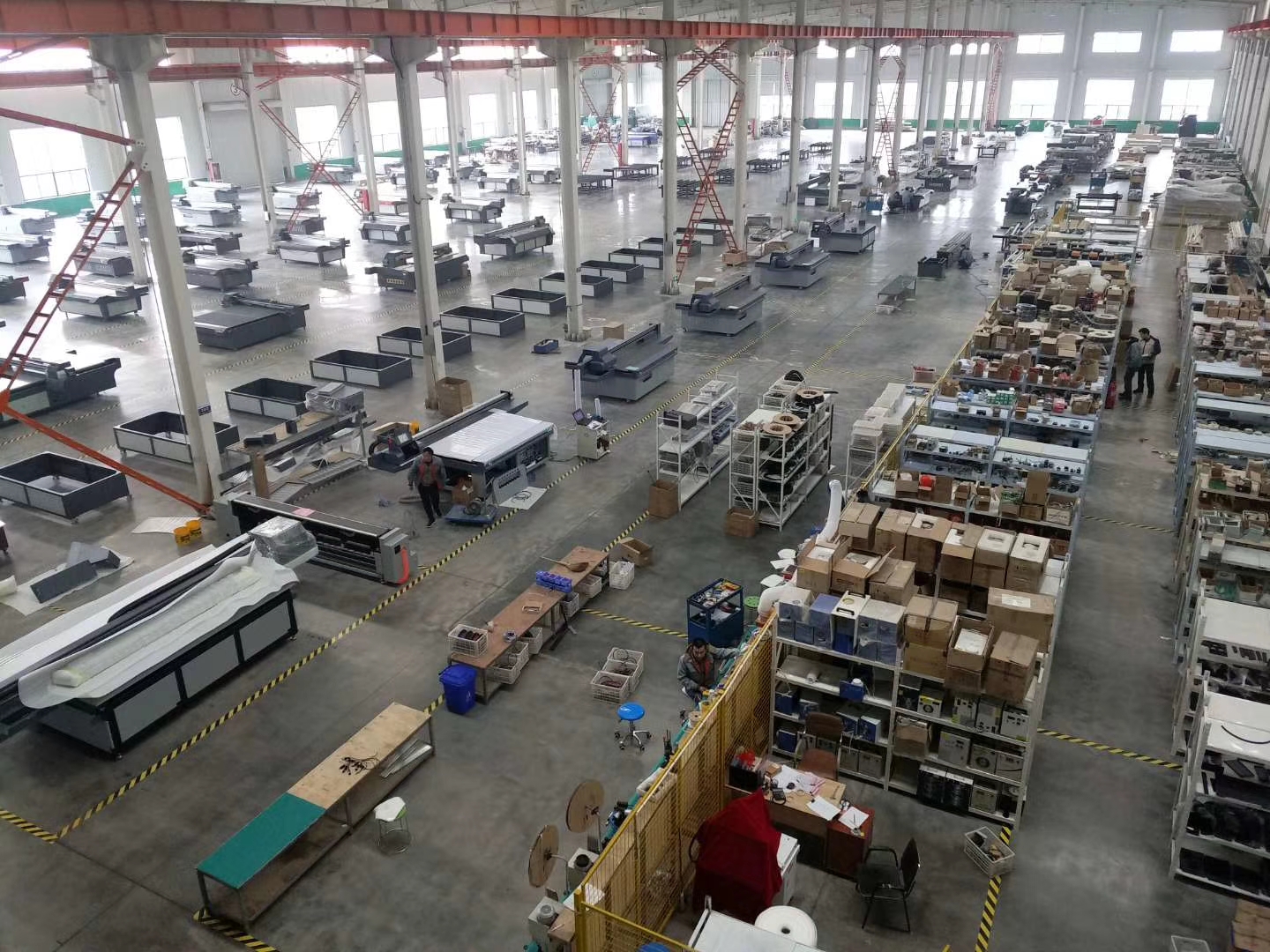

Jinan Yingcai Digital Technology Co., Ltd. is a leading manufacturer of high-quality digital inkjet UV flatbed and hybrid printers, known for reliability and excellent service.
Our printers support both rigid material printing (Flatbed) and flexible roll-to-roll printing (Roll-to-Roll / UV Hybrid), making them suitable for a wide range of industrial and commercial applications. They are compatible with materials such as glass, PVC, acrylic, metal, wood, MDF, plywood, plastic, vinyl, foam board, ceramic tile, leather, aluminum, banners, polyethylene, plexiglass, photolithography substrates, PMMA, PC, PET, TPU, marble, stone, polycarbonate, and other hard surfaces.
Typical applications include phone covers, yard signs, pens, bottles & cups, outdoor advertising, decoration accessories, embossed 3D printing, personalized printing, advertising signs, ceiling and wall backgrounds, car stickers, woodworking, advertising, arts and crafts,packaging and other hard surface printing projects.
We have established more than 20 sales and service centers across China, providing comprehensive support including design consultation, installation, training, and maintenance. Our products are exported worldwide, serving clients in Southeast Asia, the Middle East, Africa, Europe, and the United States.
Our company philosophy is to continuously improve product quality to meet customer needs.
We are actively seeking global distributors and look forward to building long-term partnerships to expand into international markets.

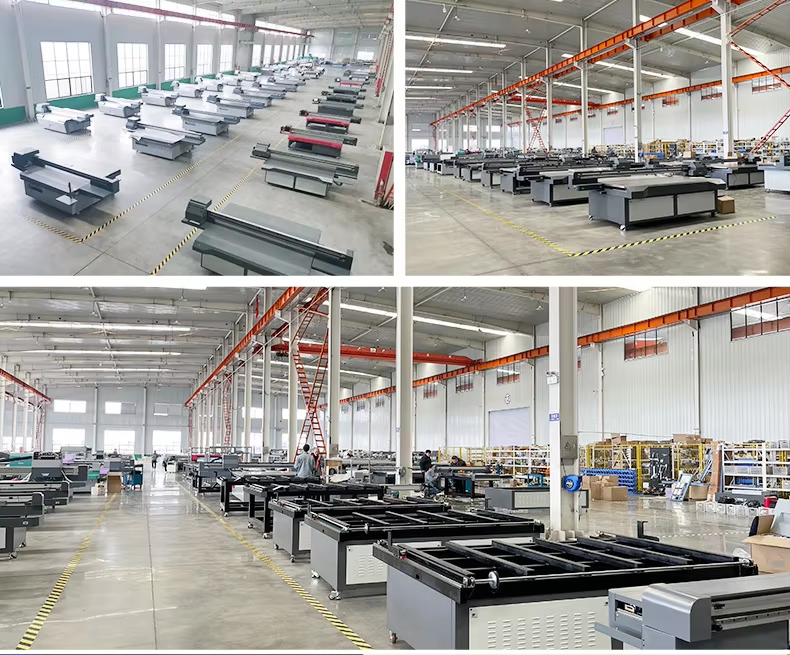

a8864de6-d375-4afa-a784-09b23d04f95e

CERTIFICATE

CERTIFICATE
Quality Assurance

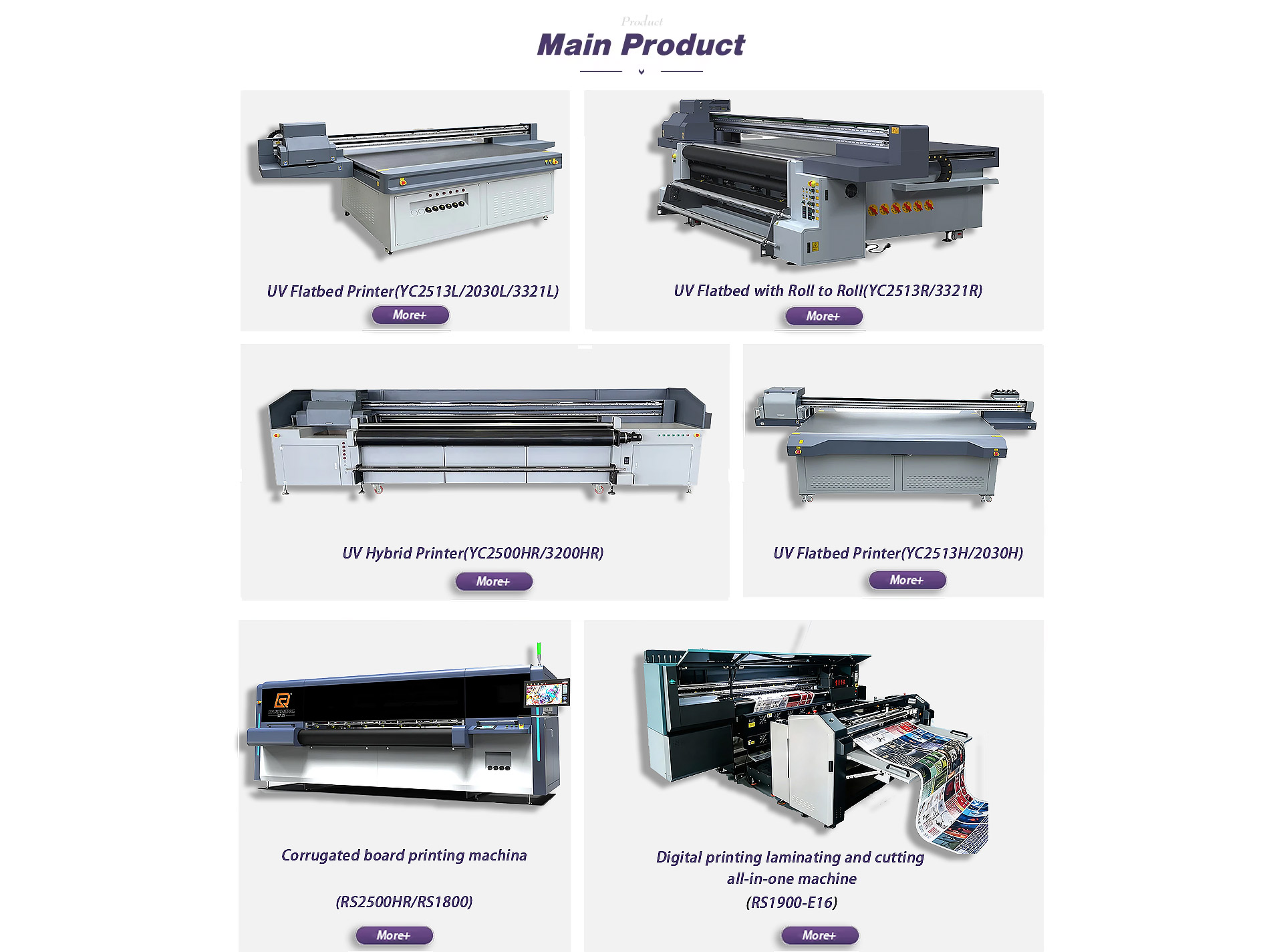

Main Product

Products Description

Professional series of wide-format flatbed UV printer YC2513L. The main advantages of this series are photographic print quality, high-speed printing, as well as accurate color transmission. It has better print quality and better ink curation. Curing system UV lamp or High-intensity powerful UV-LED can be chosen. Cost-effective solution to any flat materials printing needs.

2513L-RICOH1
dteails ico.png2

Printing table size
2500mm×1300mm

dteails ico.png1

Max material weight
50kg

dteails ico

Maximum material height
100mm

https://www.ntekuvprinter.com/2-51-3m-uv-led-flatbed-printer-with-g6-printhead-cmyk-lc-lm-w-and-v-product/
YC2513L size

Specifications

Product Model YC2513L
Printhead Type RICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number 3-8 heads
Ink Characteristics UV Curing Ink (VOC Free)
Ink reservoirs Refillable on the fly while printing/2500ml per color
LED UV Lamp more than 30000-hours life made in Korea
Printhead arrangement CMYK LC LM W V Optional
Printhead Cleaning System Automatic Cleaning System
Guide Rail TAIWAN HIWIN/THK Optional
Working Table Vacuum Sucking
Printing Size 2500*1300mm
Print Interface USB2.0/USB3.0/Ethernet Interface
Media Thickness 0-100mm
Print Resolution& Speed 720X600dpi 4PASS 15-33sqm/h (GEN6 40% faster than this speed)
720X900dpi 6PASS 10-22sqm/h
720X1200dpi 8PASS 8-18sqm/h
Life of printed image 3 years(outdoor),10years(indoor)
File Format TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software Photoprint / RIP PRINT Optional
Power Supply 220V 50/60Hz(10%)
Power 3100W
Operation Environment Temperature 20 to 30 ℃,Humidity 40% to 60%
Machine Dimension 2.1*4.4*1.4mm
Packing Dimension 4.6*2.3*1.65mm
Weight 1200kg
Warranty 12 months exclude the consumables

Advantages

1. CMYK+LC+LM+W+Varnish 8 color ink type.
2. Compatible with RICHO/TOSHIBA print head.
3. Max. 2500mm*1300mm printing size.
4. With high-power vacuum suction fans.
5. With HIWIN/THK brand linear rail and screw, no noise, high speed, high resolution.
6. Automatically ink wipe, maintenance system, prevent scratching and avoid printing head clog in idle time.
7. Ink level sensor with light and alarm.
8. Magnetic shaking setting ink the ink tank which can twirling in the bottle to avoid precipitation of white ink.
9. Automatic detecting exactly height sensor, avoiding print head scratch.
10. Stainless steel body of printer, no worry about the oxidation as ink drip on it.

Details

1.Ricoh Print Head

Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.

2.German IGUS Energy Chain

German IGUS Energy Chain
Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.

3.Vacuum Adsorption Platform

Vacuum Adsorption Platform
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.

4.Panasonic Servo Motors And Drives

Panasonic Servo Motors And Drives
Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed running is stable, dynamic response is timely, running stable.

5.Taiwan HIWIN Screw Rod

Taiwan HIWIN Screw Rod
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.

8 Front Plate (Spray Plate: SATA-8)

Advantage

Print Speed and Quality to Suit Your Production Needs

NTEK flatbed printer with newest digital inkjet printing technology offers users direct-printing capabilities onto a virtually limitless choice of three-dimensional media. In addition to supplying technology for product customization, We offers a range of small and large UV printer devices. NTEK UV flatbed printer utilizes state-of-the-art technology to deliver a powerful and reliable digital alternative to traditional screen print operations.

NTEK UV flatbed printer can print on the following materials:Glass, plastic, metal, leather, acrylic, wood, ceramic, PVC, ABS, stone, cardboard, paper, cylinder bottles, balls, pens, phone cases, id cards, bags, boxes, photo album, oil paintings, slipper etc.

Production quality          35sqm/h

PRINTING SPEED01

High quality                    25sqm/h

PRINTING SPEED02

Super high-quality          20sqm/h

PRINTING SPEED03

With years of export experience along with excellent quality, advanced services and competitive prices, we have won numerous customers' trust and support.
1. Every printer we delivered need to pass our second inspection before delivery.
2. International standard wooden package for digital printing machine.
3. Our shipping forwarder could help you to deal with the custom clearance.

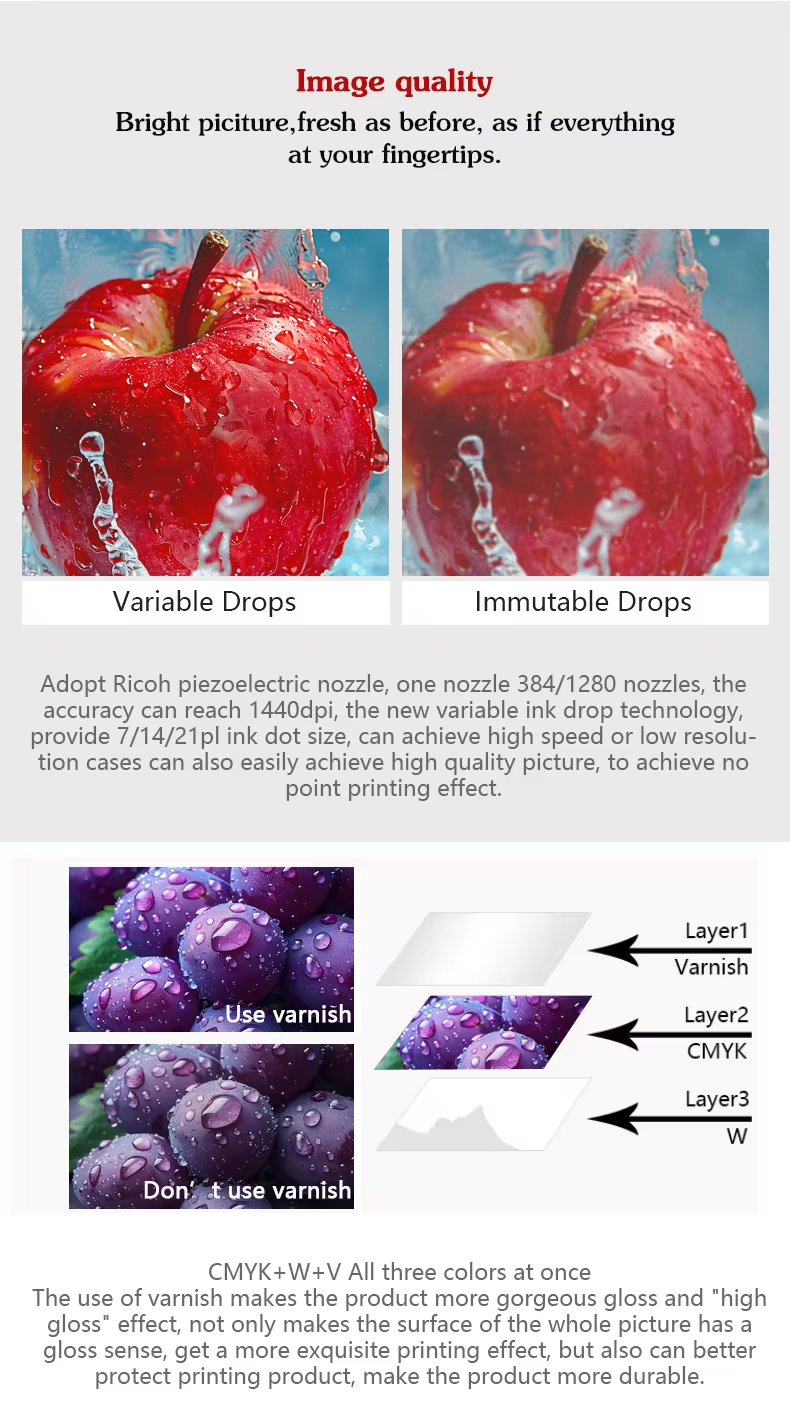

Image quality

Image quality

Application

1

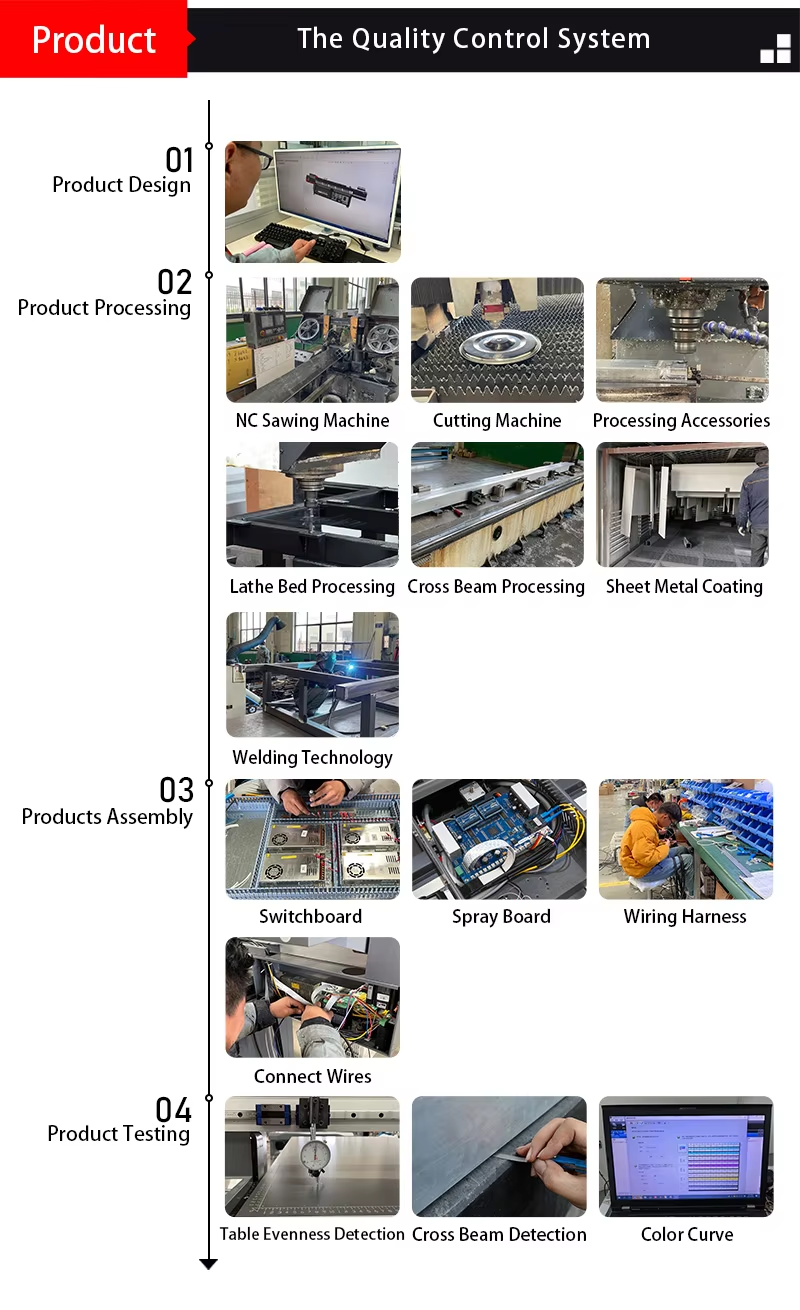

The Quality Control System

quality

Exhibition Show

Exhibition

Customer Photos

Customer Photos

Packing & Delivery

Packing & Delivery

MAIN MARKET

MAIN MARKET

Customer Feedback

微信图片_2026-03-24_133928_120

Frequently Asked Questions

1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
4.How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.
6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
7.How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can contact our technician or me directly.
8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10.What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
